Advanced Beam Diagnostic Systems
Comprehensive engineering, precision manufacturing, and full UHV integration for particle accelerators and synchrotron light sources.
CORE CAPABILITIES
Beam Position Monitors (BPMs)
Electromagnetic and mechanical design of button and stripline monitors. Our systems are optimized for maximum sensitivity, precise signal mapping, and seamless Ultra-High Vacuum (UHV) compatibility.
Faraday Cups & Diagnostics
Intensity measurement and beam profiling systems equipped with advanced thermal management. Engineered to withstand high power loads using active cooling technologies and OFE copper components.
Beam Slits & Collimators
Collimation and profiling systems featuring ultra-high precision kinematics. We integrate micrometric positioning mechanisms designed for reliable, long-term operation under extreme vacuum conditions.
Featured Developments

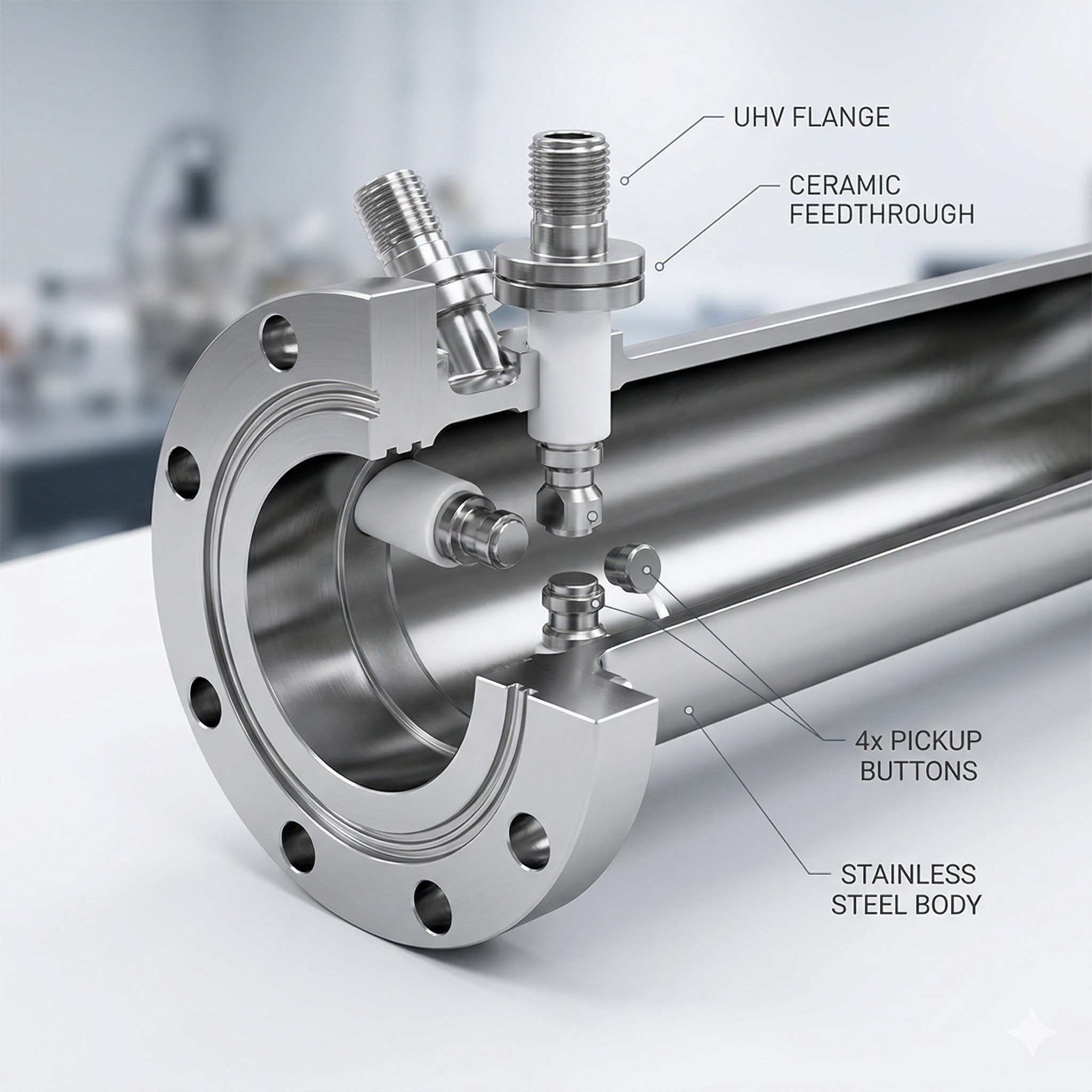

Project A: Button BPM Design
Custom engineering and UHV manufacturing of button-type position monitors for high-energy beamlines.

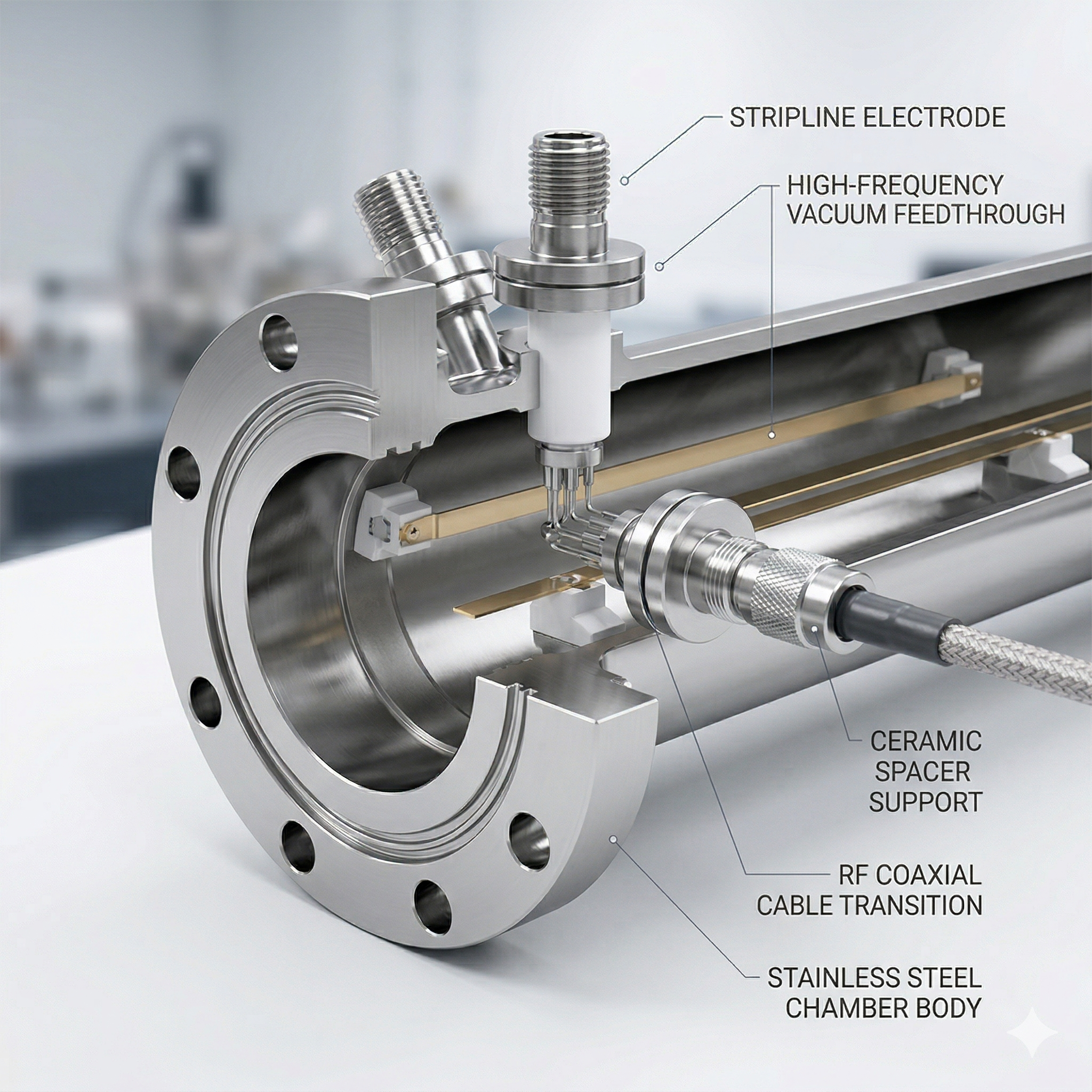

Project B: Stripline Detectors
High-frequency signal mapping detectors engineered with tight mechanical tolerances.

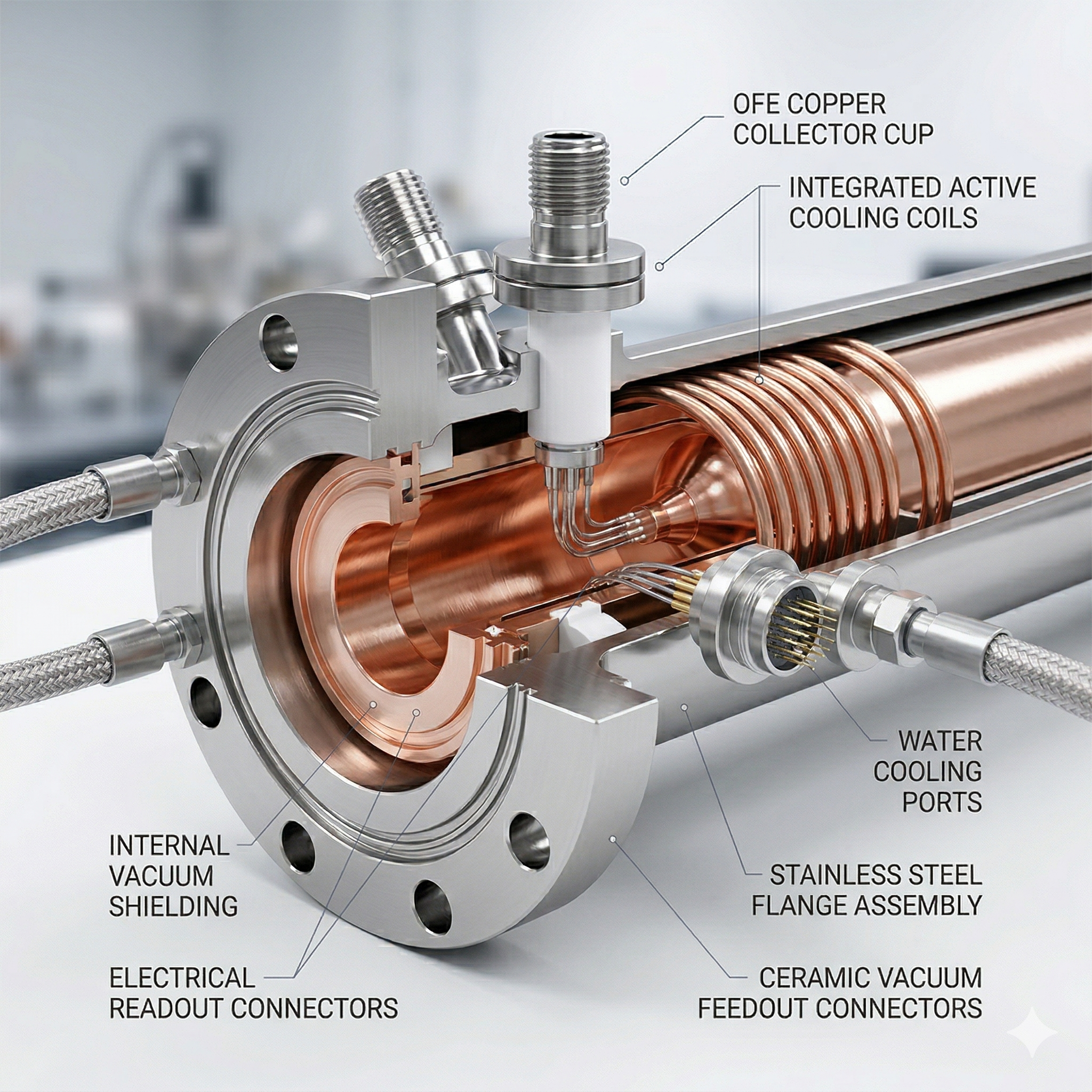

Project C: Faraday Cup System
Destructive diagnostic tool with active thermal management using OFE copper.

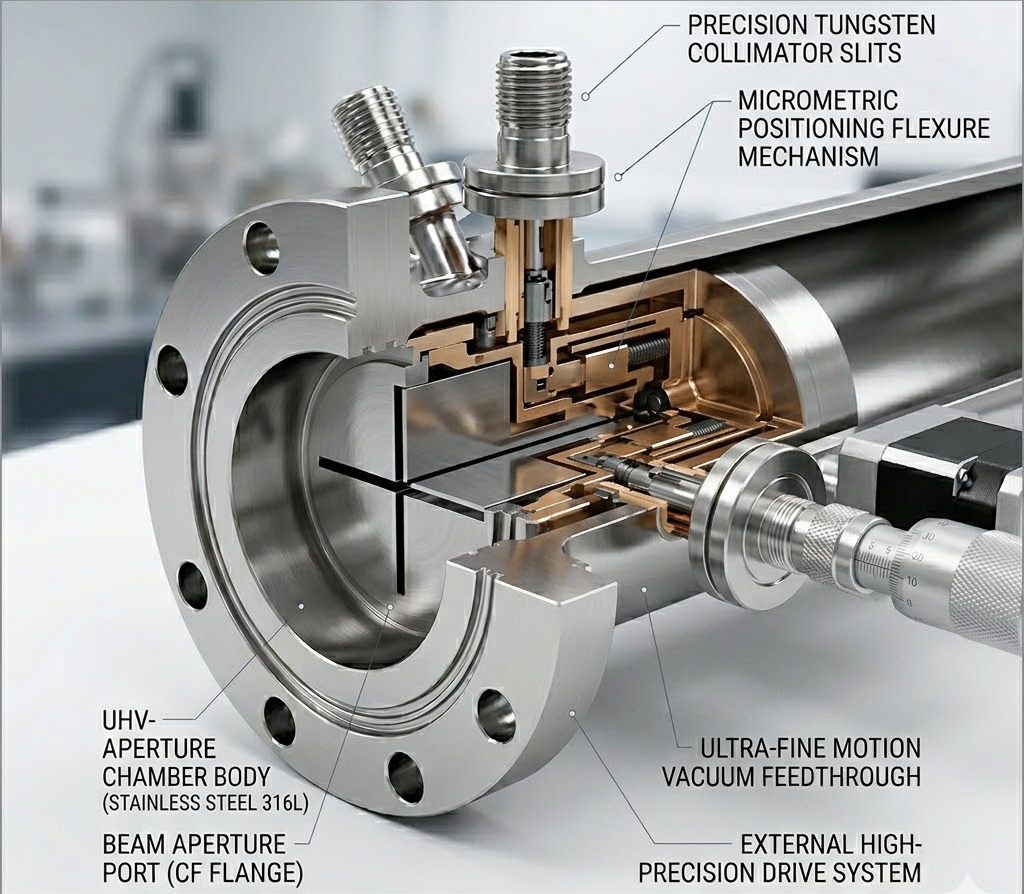

Project D: Precision Collimator
Micrometric positioning slits integrated into a robust UHV-compatible chamber.
Developing a new beamline or upgrading existing instrumentation?
Our engineering team is ready to review your conceptual requirements, mitigate technical risks, and propose viable, high-performance manufacturing solutions.
